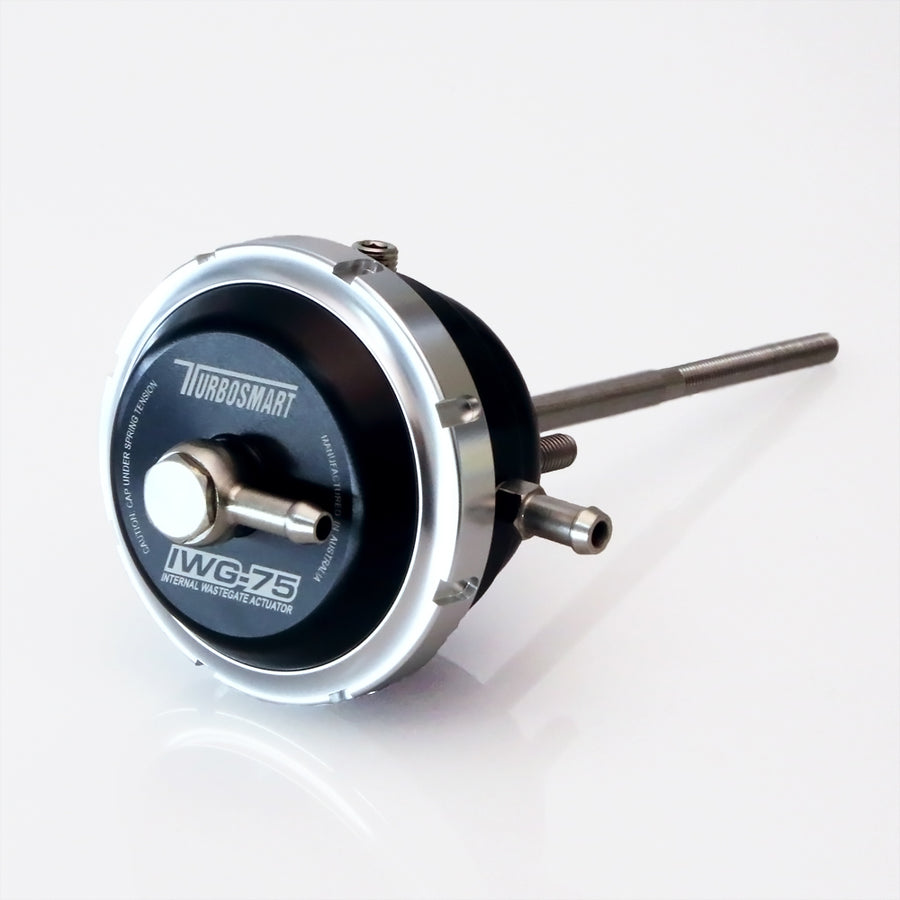

Turbosmart TS-0620-1143 Twin Port Actuator
Please ensure this is the correct part you require, if you are unsure in any way please call our support team on 01924 894171.
It is all about control
The Twin Port IWG-75 uses the air-pressure differential between two sealed chambers to create a dynamic force which overcomes the mechanical spring force in the actuator. Creating a boost curve that is much more precise, and allows for a much wider boost range between minimum boost and maximum boost, than the single tier control offered by conventional actuators.
This makes the Twin Port IWG-75 ideal for traction limited applications, such as front-wheel drive or drag racing vehicles.
The IWG-75 is released to suit Borg Warner’s EFR range of high performance internally wastegated turbochargers, along with a universal fit model, with more applications coming in the future.
The Turbosmart wastegate actuator range has been designed as a stronger, more reliable replacement for OEM parts. Like all Turbosmart parts, billet construction means they are stronger and more durable than a stock actuator, while Turbosmart’s focus on performance means boost comes on faster and holds on longer.
The Turbosmart IWG-75 actuator range features:
• Stable boost control
• Improved boost response
• Flatter boost curve in the top end
• Interchangeable springs for a great range of boost levels
Twin Port Actuator For Use With BorgWarner EFR Turbos as shown below:
|Borgwarner Turbo EFR 7064-B 179355|
|Borgwarner Turbo EFR 7064-C 179389|
|Borgwarner Turbo EFR 7670-B 179351|
|Borgwarner Turbo EFR 7670-C 179390|
|Borgwarner Turbo EFR 8374-B 179258|
|Borgwarner Turbo EFR 8374-C 179357|
|Borgwarner Turbo EFR 9180-B 179358|
|Borgwarner Turbo EFR 9180-C 12809880000|
