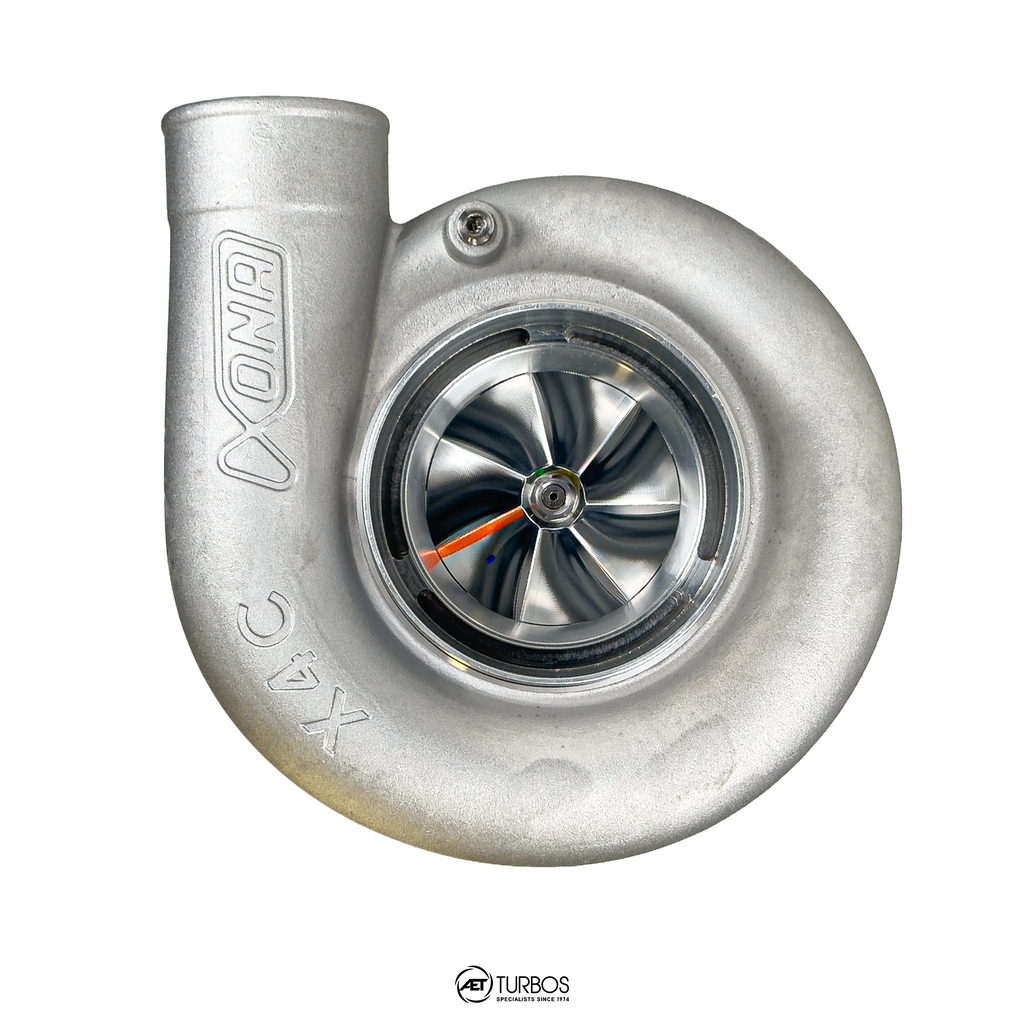

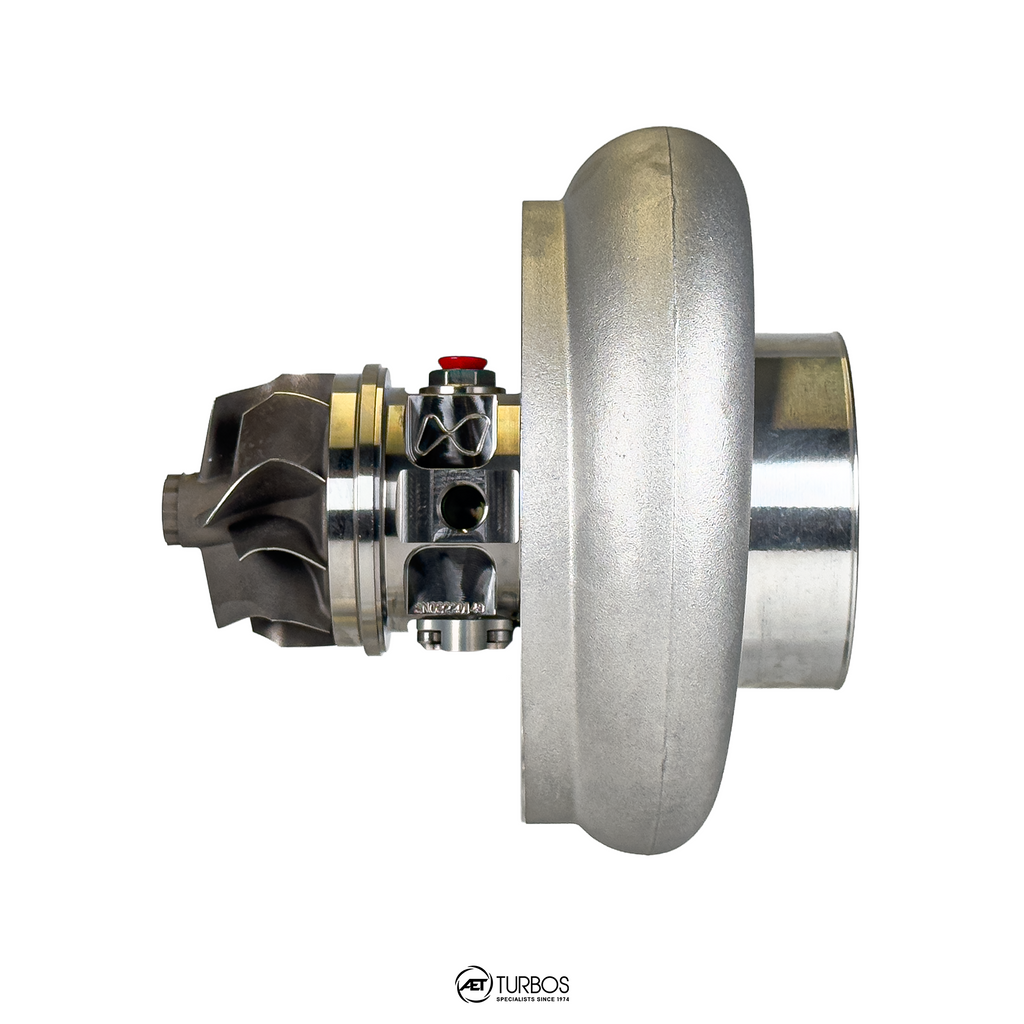

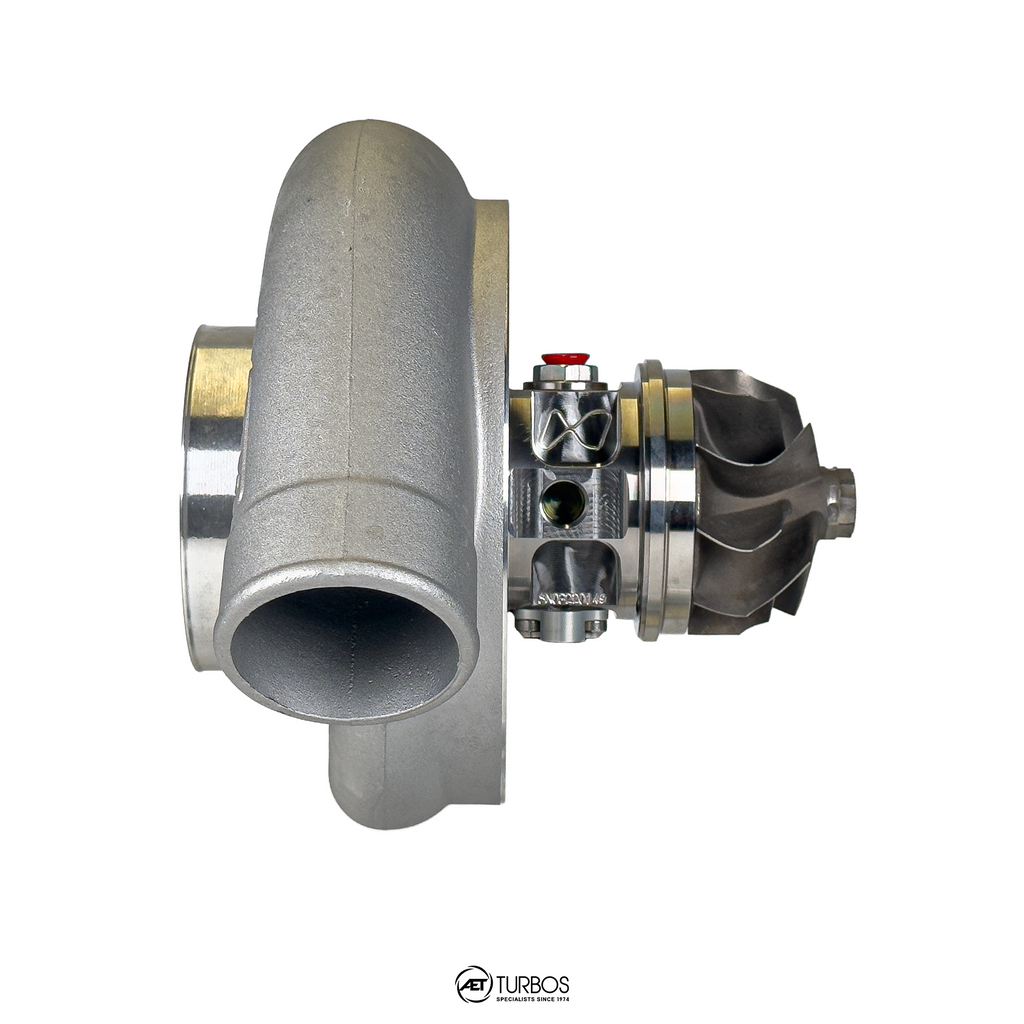

Xona Rotor X4C XRC7269S Turbocharger | 550 - 1100 HP
For availability and up-to-date pricing, please call 01924 894171 and a member of our dedicated team will be able to assist you
Xona Rotor X4C XRC7269S Turbocharger | 550 - 1100 HP
For more information, view this product on our Xona By AET website: CLICK HERE
Previous naming convention: X4C XR10569S
Compressor Cover Size: X4C
HTC Compressor Wheel: 105LB/Min
Power: 550 - 1100HP
Turbine Wheel: 78/69MM
Compressor Wheel: 72/99MM
Dual Ceramic Ball Bearing
Billet Stainless Steel Lightweight Bearing Housing
Boost Port (Compressor Cover) is 1/8 NPT fitting
---------
|
Turbine Housing |
A/R |
Wastegate |
Outlet |
| SS V-Band 0.63A/R | 0.63 | External | V-Band |
|
SS V-Band 0.82A/R |
0.86 |
External |
V-Band |
|
SS V-Band 1.03A/R |
1.03 |
External |
V-Band |
|
SS F3V (T3) T/H 0.63A/R |
0.63 |
External | |
|
SS F3V (T3) T/H 0.82A/R |
0.82 |
External | |
|
SS F3V (T3) T/H 1.03A/R |
1.03 |
External | |
|
SS F3V (T3) T/H 1.21A/R |
1.21 |
External |
Our AET Turbos repair service is available on this turbo. To request a price for repair, or to learn more about our repair service, please leave your contact information below along with the details from your turbo (If possible), and a member of our team will contact you at the earliest convenience.
