Contact Us For Latest Pricing

For availability and up-to-date pricing, please call 01924 894171 and a member of our dedicated team will be able to assist you

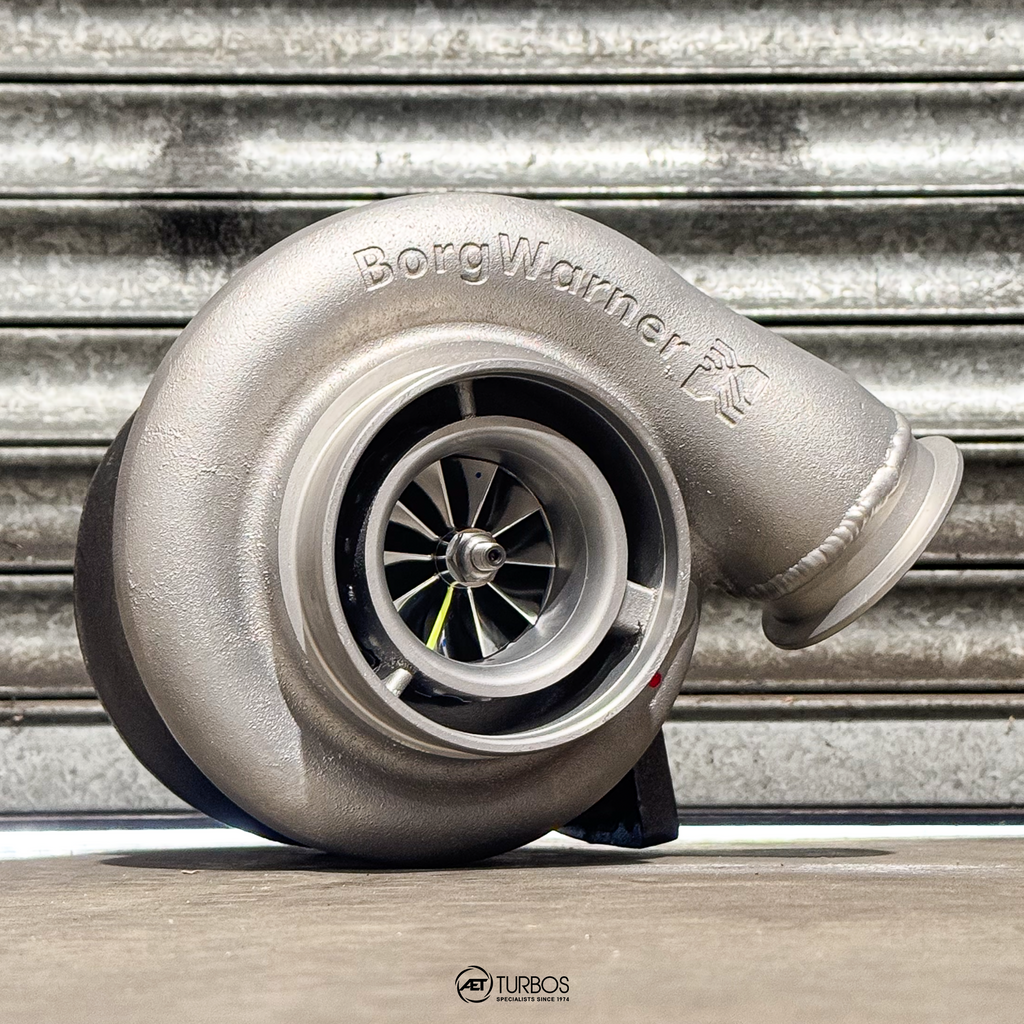

Supercore Part Number: 14009097013

Power: 400-1100 HP

Key Features

• 360 degree thrust bearing

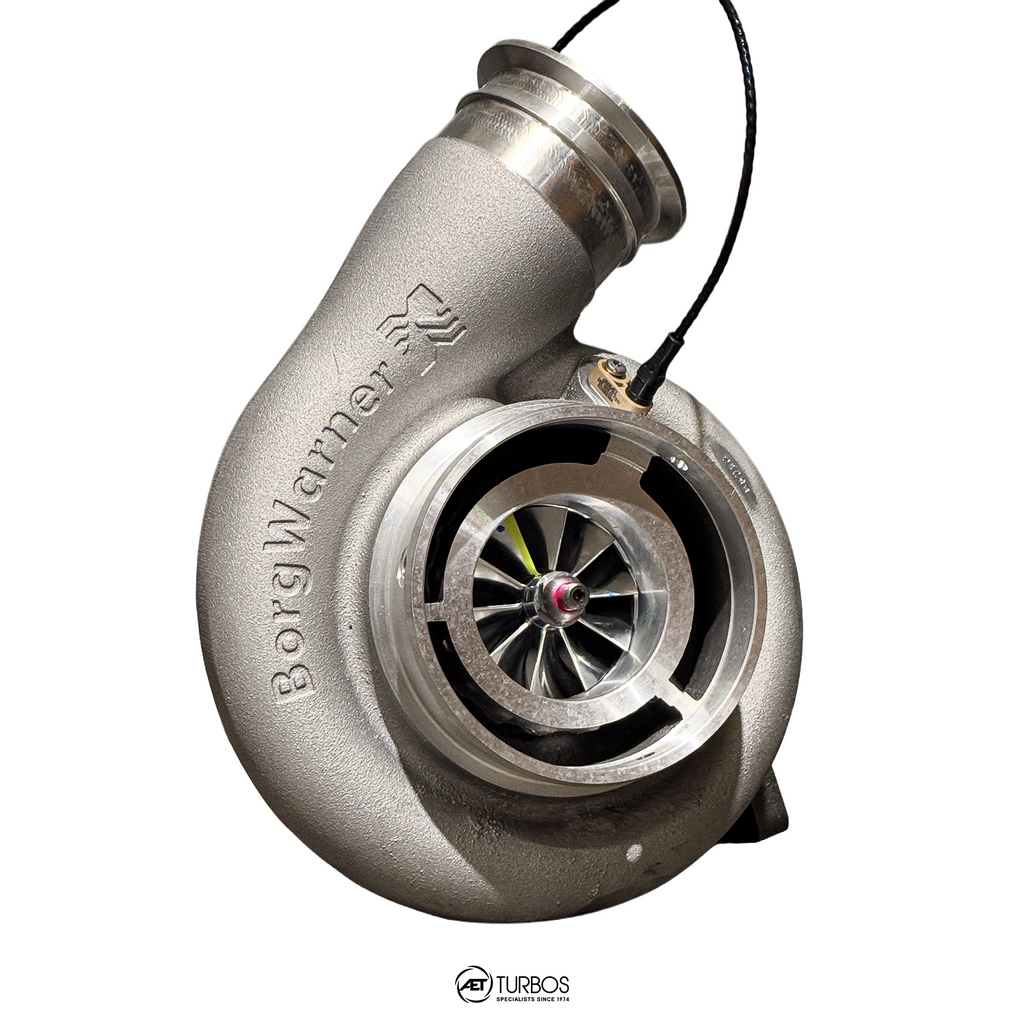

• Integrated speed sensor port

• Forged milled compressor wheel

• Flexible compressor cover outlet options

• Pre-machined boost port

• Optimised compressor stage aerodynamics

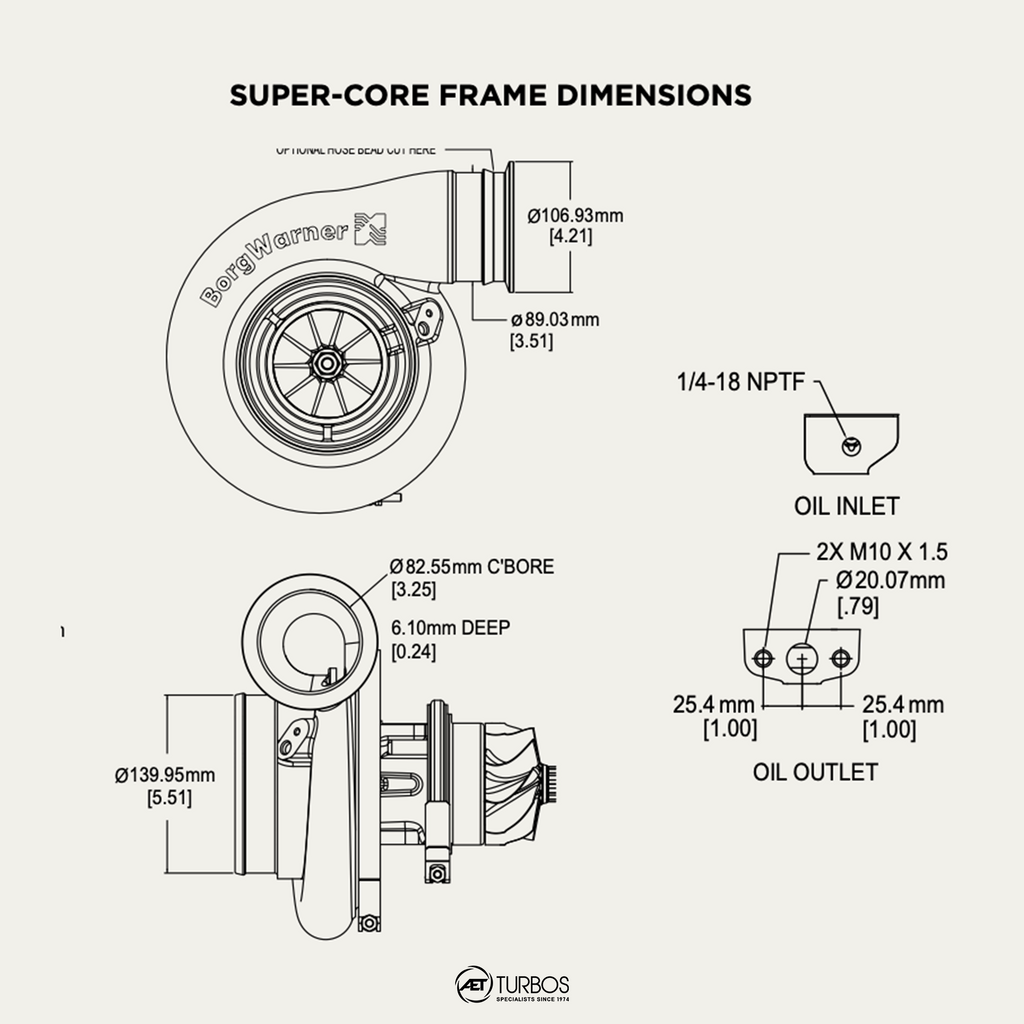

Key Measurements

Comp. Wheel O.D. (in/mm): 3.94/100.00

Comp Wheel Inducer Dia. (in/mm): 2.99/76.00

Turbine Wheel O.D. (in/mm): 3.77/95.70

Turbine Wheel Exducer (in/mm): 3.47/88.05
