Garrett G-Series G30-660 Supercore - 880693-5001S

£1,095.00 £1,295.00

For availability and up-to-date pricing, please call 01924 894171 and a member of our dedicated team will be able to assist you

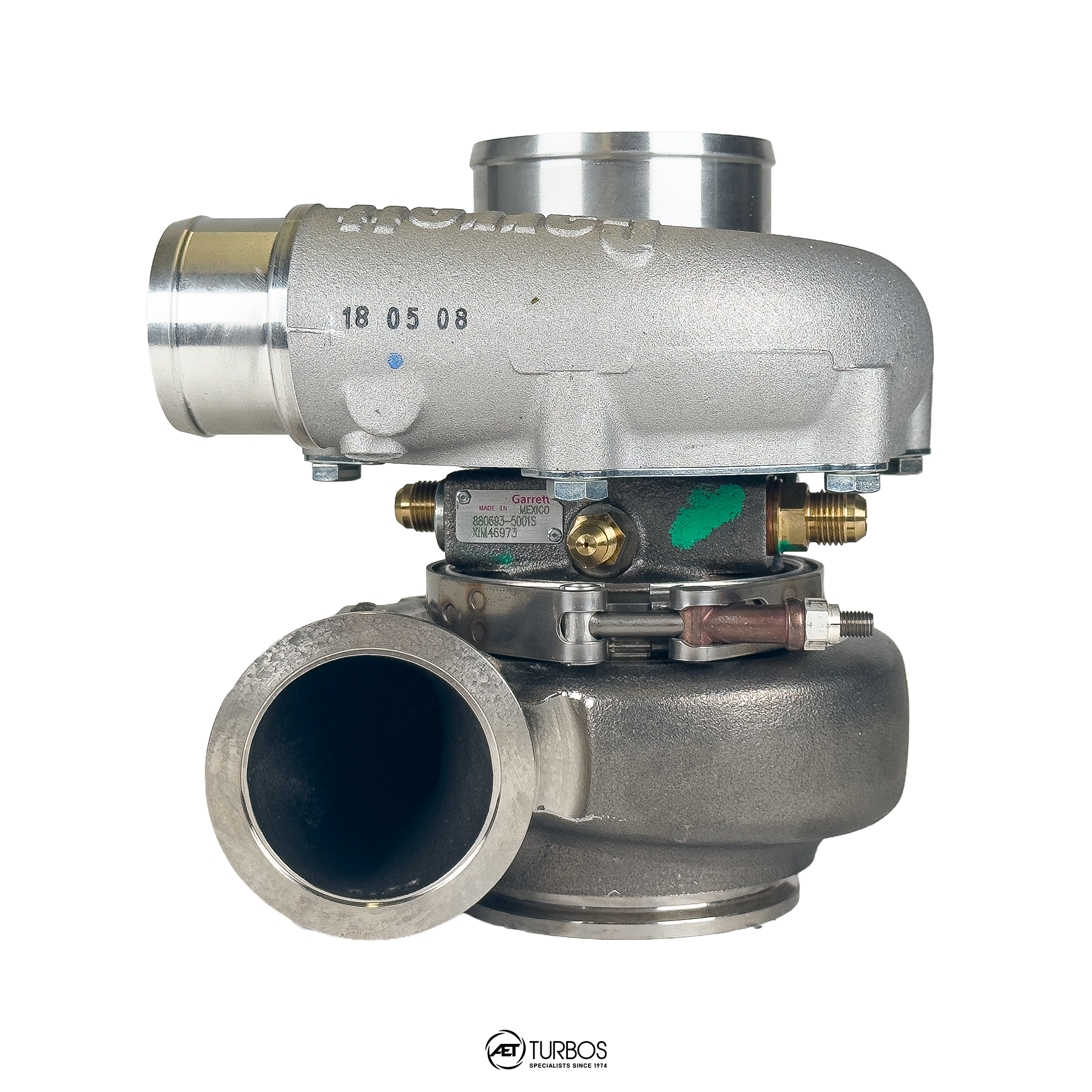

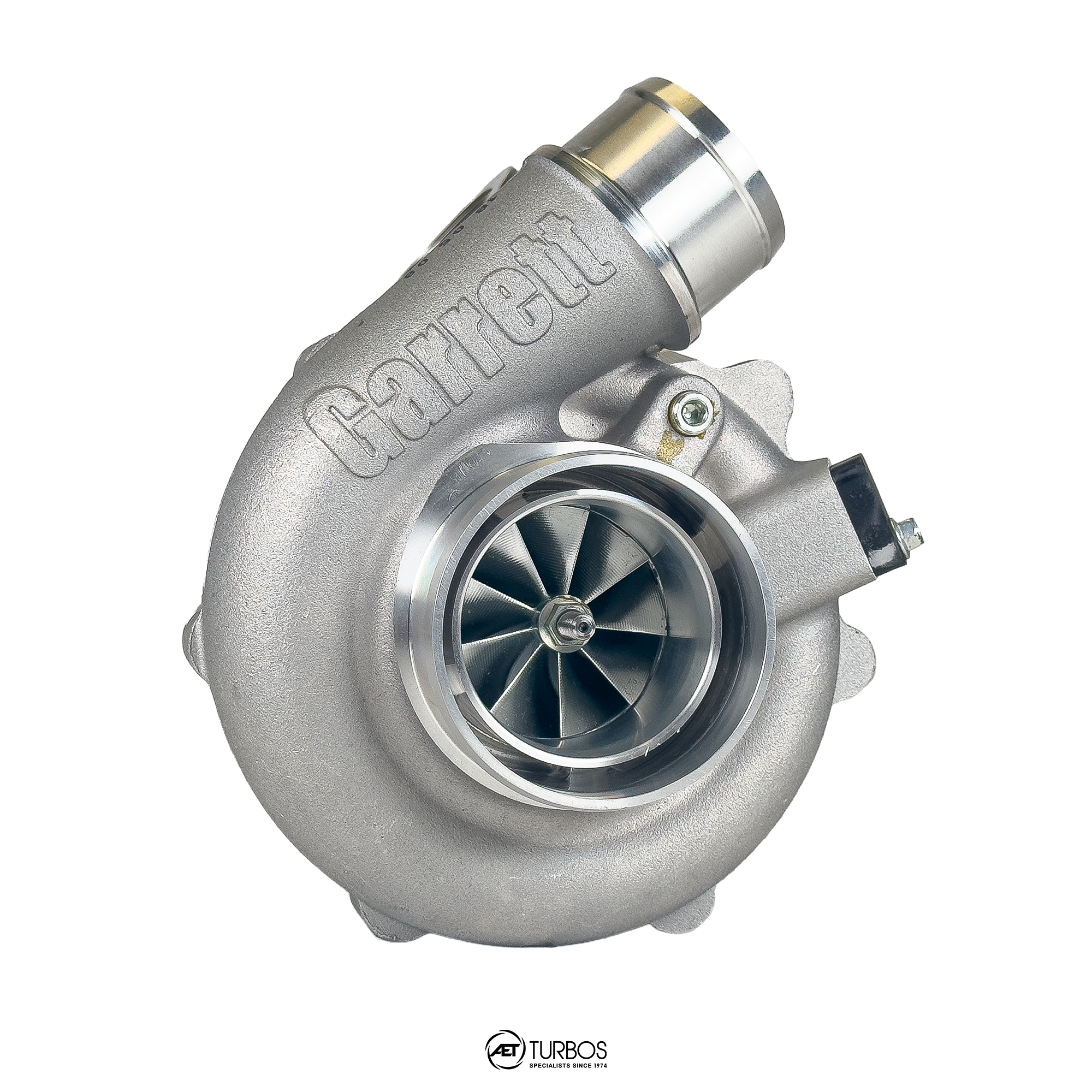

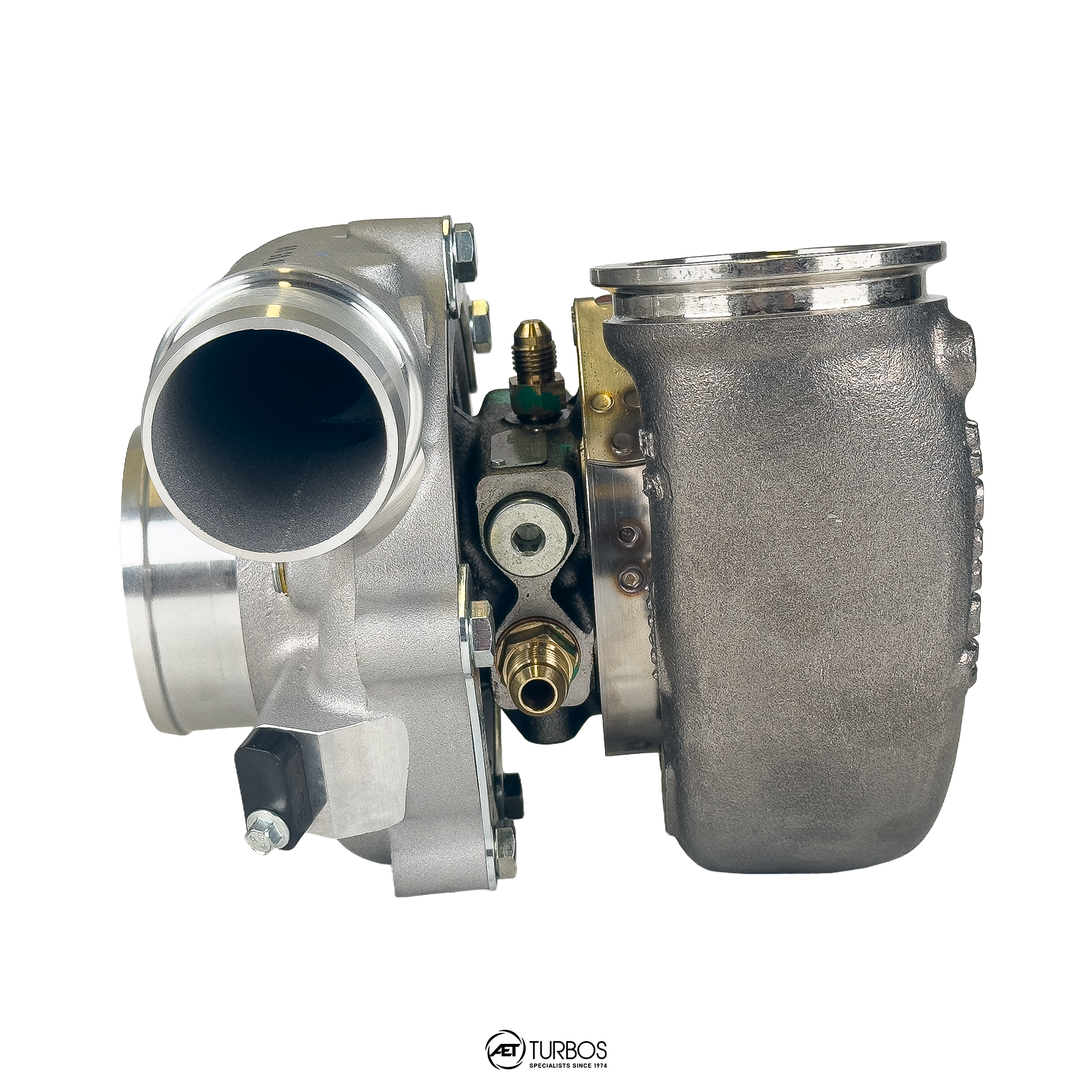

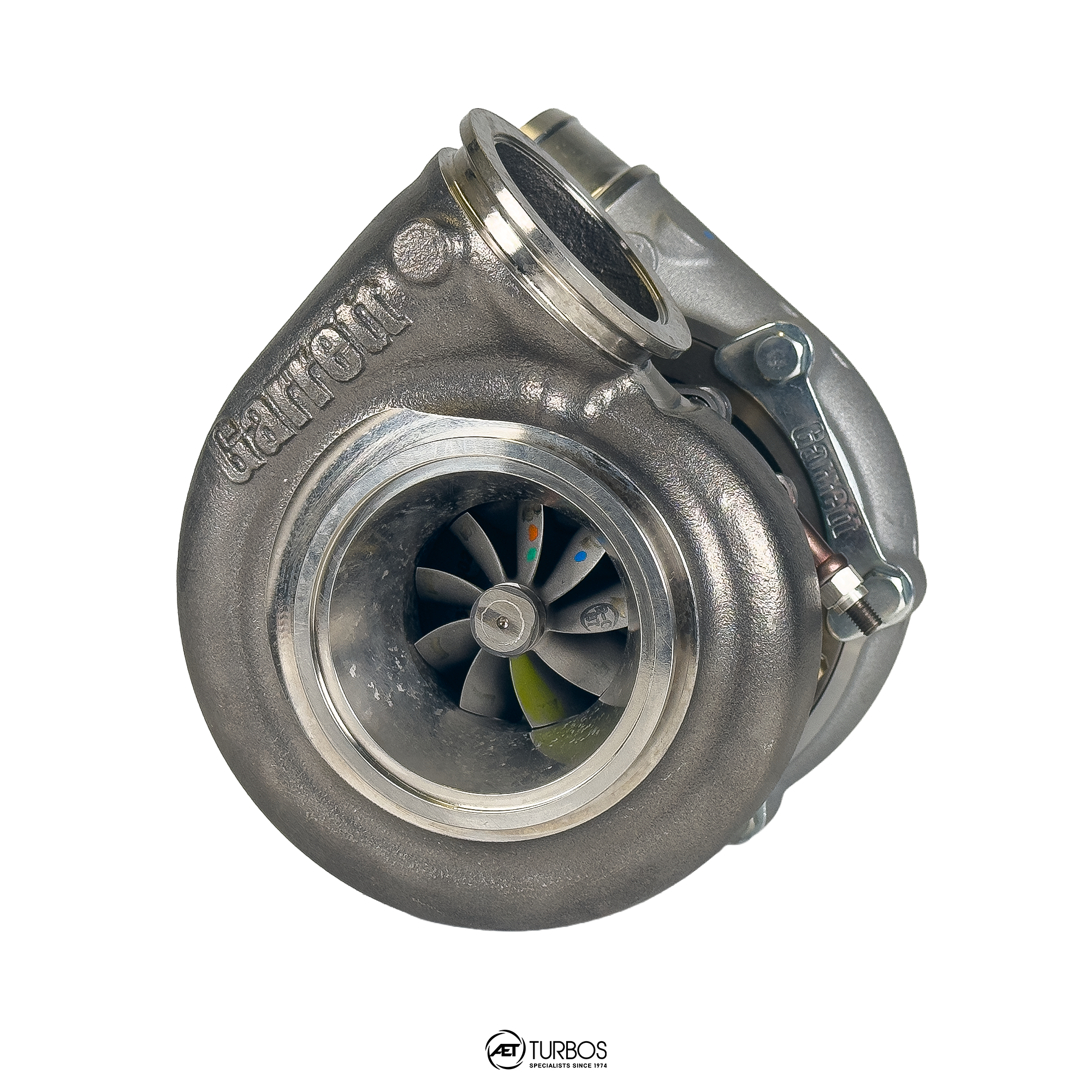

The Garrett G-Series G30-660 turbocharger is designed for high-performance applications requiring exceptional airflow, efficiency and response. Suitable for engines from approximately 2.0L to 3.5L and capable of supporting up to 660 horsepower, the G30-660 combines Garrett's latest-generation compressor and turbine aerodynamics with advanced high-temperature materials.

Developed to deliver increased flow and efficiency compared with previous-generation designs, the G30-660 features a 54mm compressor inducer, a high-efficiency compressor wheel and a MAR-M alloy turbine wheel capable of operating at temperatures up to 1050°C.

The G-Series represents the next generation of Garrett turbocharger technology, delivering the performance, efficiency and durability required for demanding road, track and motorsport applications.

Key Features

G-Series compressor aerodynamics for increased airflow and maximum power
54mm compressor inducer

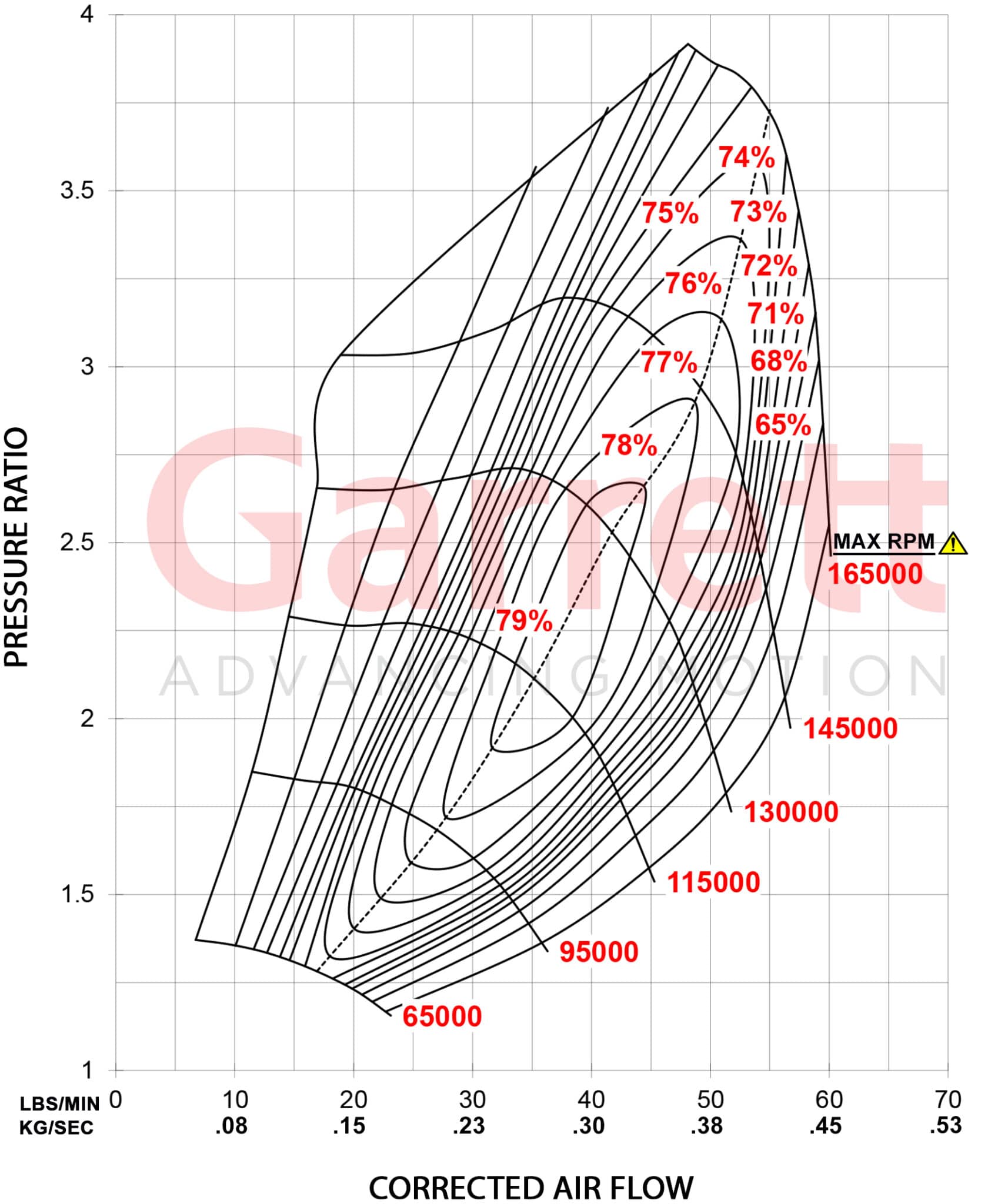

Compressor wheel with up to 79% maximum efficiency
MAR-M alloy turbine wheel rated to 1050°C

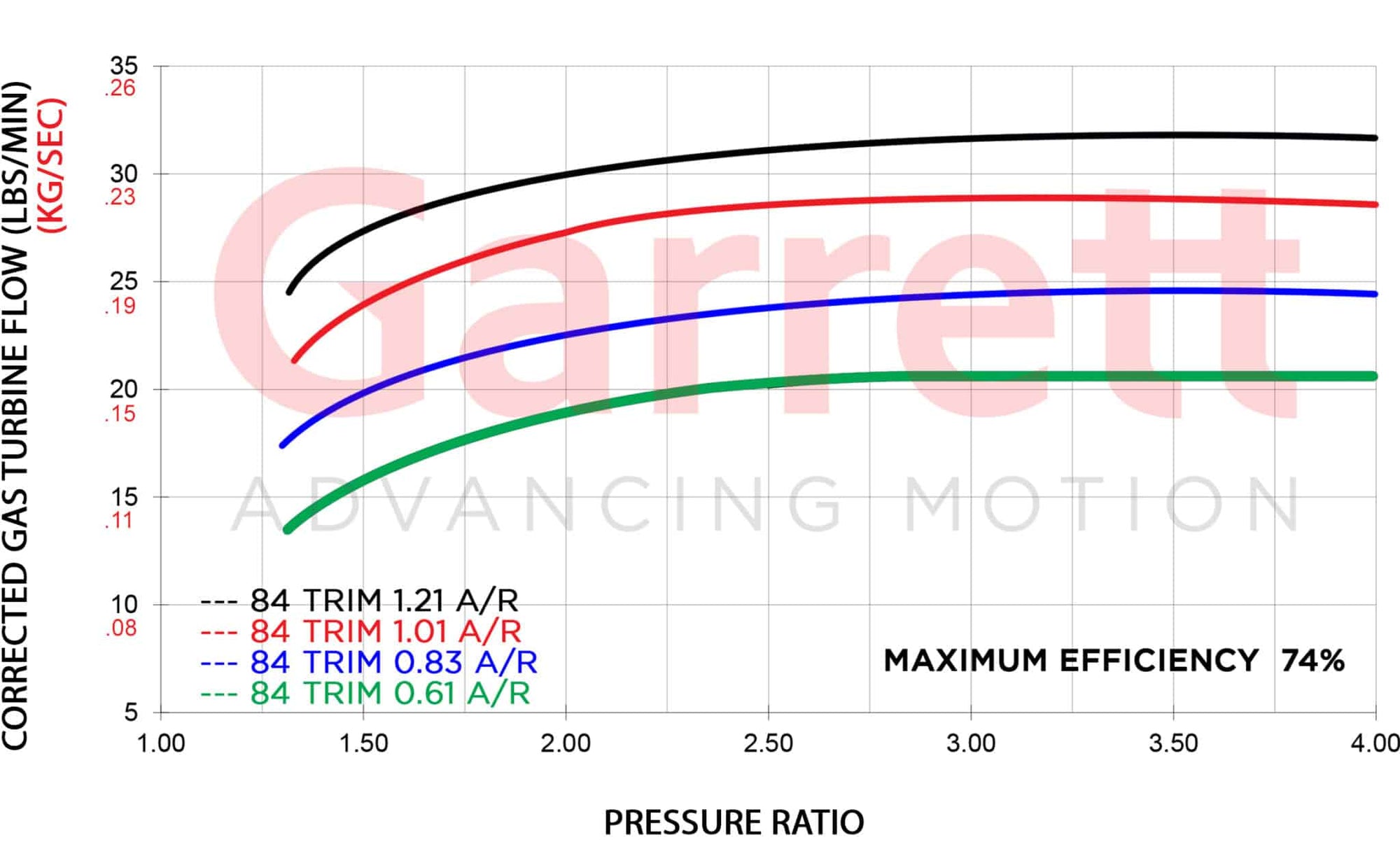

New-generation turbine aerodynamics for improved flow and efficiency
Stainless steel turbine housings rated to 1050°C
Fully machined speed sensor and pressure ports
Oil restrictor and water fittings included
Standard rotation Super Core
Super Core part number: 880693-5001S

Technical Specifications

Specification	G30-660
Turbocharger Frame	G30
Power Range	350–660 HP
Recommended Engine Displacement	2.0L–3.5L
Compressor Inducer	54mm
Compressor Exducer	67mm
Compressor Trim	65
Compressor A/R	0.70
Turbine Inducer	60mm
Turbine Exducer	55mm
Turbine Trim	84
Rotation	Standard
Super Core P/N	880693-5001S
