GT35 Stainless Steel Housing - TiAL Sport

GT35 Stainless Steel Housing - TiAL Sport

TiAL Sport

  • £537.75

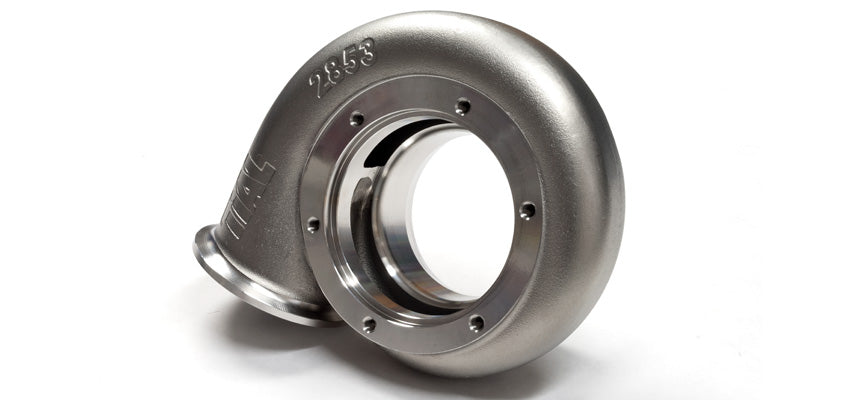

Lightweight stainless steen turbine housing for the GT/X 35 series turbochargers. Compatible with the 68mm 84 trim turbine wheel.

SPECIFICATIONS


  • Typically lighter weight than a corresponding iron housing of the same A/R
  • Investment cast stainless steel for a beautiful, smooth interior and exterior
  • Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
  • Three A/R options
  • Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
  • Better heat retention than cast iron
  • Inconel bolts provided for vibration and stretching resistance in extreme applications
  • Locking tabs included for high vibration applications
  • Pivoting of the turbo 360* possible

Included With Every Housing

  • Turbine Housing
  • Three Moon Tabs
  • Six Inconel Bolts
  • Three Locking Tabs

TiAL V-Band Clamp & Flange System

  • TiAL V-Band flanges are manufactured in house
  • GTVFL3.0 - Inlet Flange
  • VC300 - Inlet Clamp
  • VBF300M - Outlet Flange
  • VC355 - Outlet Clamp

CONFIGURATION


GT35 Housing Option
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD
Flanges/Clamps Included? No
Housing Weight 6.7lbs (largest A/R)
Turbine Wheel 68mm 84 Trim
